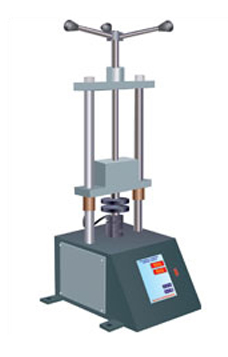

Hand Operated Tensile Testing Machine

Hand Operated Tensile Testing Machine

Hand Operated Tensile Testing System, the two column frame with a hand wheel operated lead screw is a perfect tool for tension, compression and flexural testing of springs, rubber, paper, film etc., with apt attachments. These are appreciated for their durability, accuracy of results and high tensile strength. It is a better Tensile Tester Machine having variety of applications.


    FEATURES :

  • Table Top Model
  • Digital Display of load and Elongation.
  • Feather touche Key board operation.
  • Tare Facility for force and displacement.
  • Load display in Kg. Or Newton.


SPECIFICATIONS :

MODEL SET-H-1000 N SET-H-2500 N SET-H-5000 N
Max permissible force 100 kg. 250 kg. 500 kg.
Resolution 0.01 kg. 0.03 kg. 0.05 kg.
Soccernet 250 mm 250 mm 250 mm
Resolution 0.1 mm 0.1 mm 0.1 mm
Width Between Column 200 mm 200 mm 200 mm
Load Cell Safety Alarm Alarm Alarm
Size w x d x h 300 x 430 x 1100 mm 300 x 430 x 1100 mm 300 x 430 x 1100 mm
Power Supply 230 VAC 50 Hz
Single Phase
230 VAC 50 Hz
Single Phase
230 VAC 50 Hz
Single Phase
